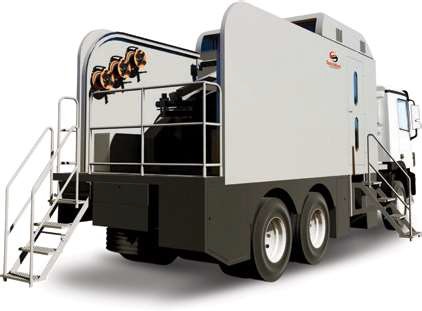

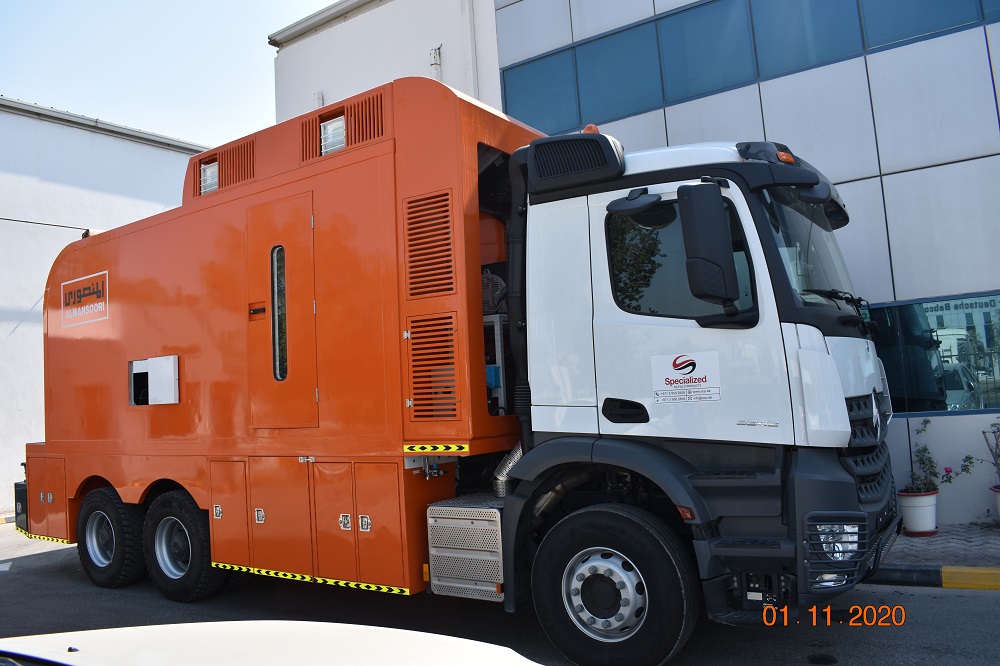

LOGGING TRUCK





MAIN SPECIFICATIONS



  1. Heavy duty truck chassis, 6x4, 400HP, Euro 4 or 5, LH or RH drive side
  2. 315/80 R 22,5 tiers on front and rear axles, centralized inflating system
  3. Powerful hydraulic closed loop winch drive ran by engine PTO
  4. 20 kVA, 4 poles, 3-phase Generator, hydraulically driven, open loop hydraulic circuit, PTO driven pressure compensated pump
  5. Efficent climatic and noise logging cab insulation tanks to sandwich panel type payload body
  6. Powerful air conditioner specially designed for desert and offshore weather temperature and humidity conditions ( -20°c, +55°c, 90% RH )
  7. Easy access downhole tool rack underneath payload floor above chassis rails, minimum storage of about 40 m of 3 3/8 (86mm) OD tools
  8. Storage for perforating guns is provided under the floor of the winch access from the rear of the truck
  9. 48-IN OD, high strength drum, suitable for 15/32", 5/16" logging cables
  10. Drum capacity 25,170 Ft of 15/32" and 55,497 Ft of 5/16" ( 52" OD drum is available as optional equipment if higher cable length capacity is required )
  11. Max. certified pull:12,000 LBF, Max. speed 20 000 FpH ( both limited for operation safety)
  12. POOH safe operations included in smart winch control applications
  13. 2-OFF drum brake bands activated by fail safe pneumatic cylinders
  14. Wired 19", 41U tall instrumentation rack, easy accessible by logging engineer
  15. PLC assisted smart winch control terminal with chassis and winch controls and data indications

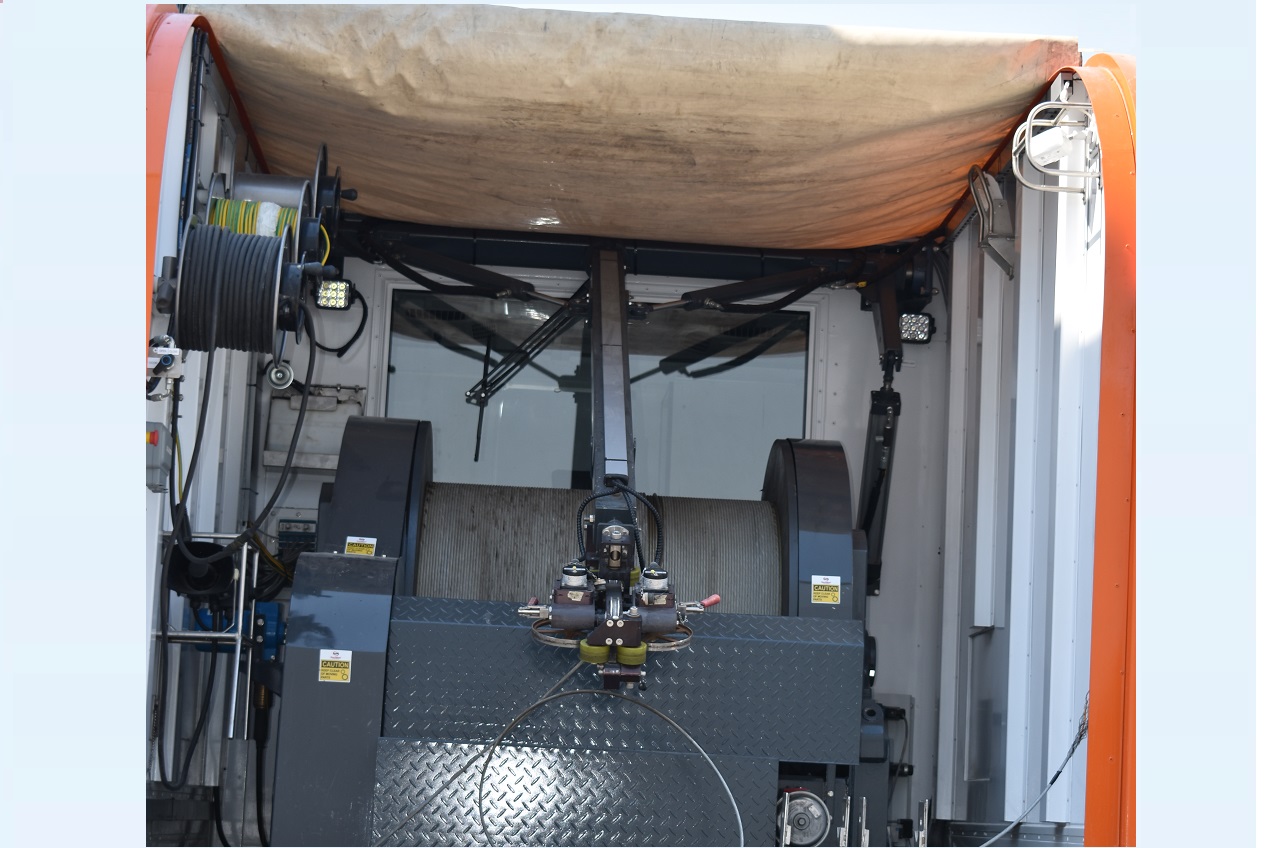

  16. AM 5K measuring head supported by spooling arm installed above the winch window, hydraulically controlled side to side movements, pneumatically controlled lift up
  17. LED lighting inside control cab and outside, short beam flood lights on drum, high beam towards Rig floor
  18. Anti glare curtain, wiper and water spray on large multi glass winch window
  19. Hazardous area certified multi skids offshore unit powered by 111 HP, Zone-2 diesel engine power pack
  20. Paint color, logos and signs per customer request
  21. Full technical documentation supplied with each unit, operators training and unit commissioning proposed in addition
