INTEGRATED WIRELINE TRUCK UNIT

INTEGRATED TRUCKS

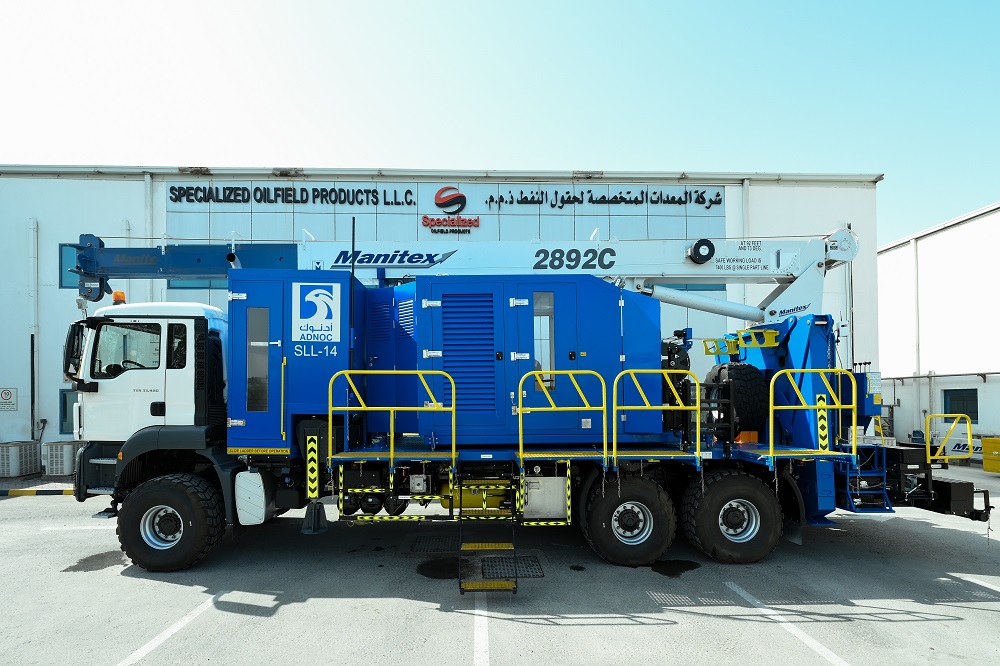

A single truck unit enables to do comprehensive slickline operation, equipped with suitable crane and the slickline winch unit

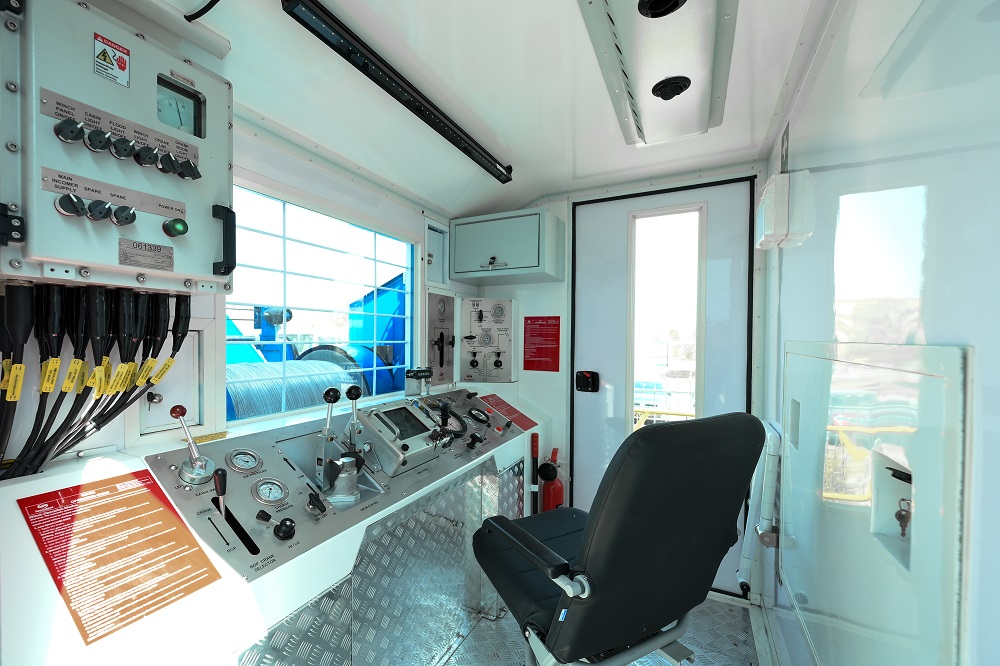

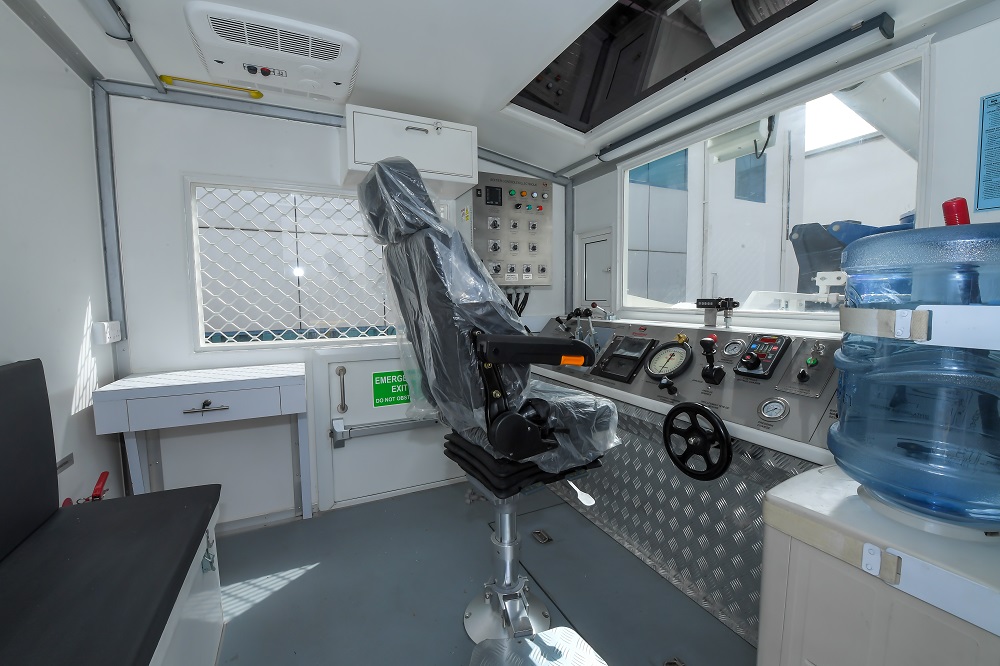

Operator cabin can be swing to 45° angel on both side convenient to well location, the cabin swing operates by hydraulics
Crane is 4 section 92' (28 m) long boom and 28 ton lift capacity @ 5 ft. radius, and @ 10 m radius with 97 ft. vertical height, 3.8 ton lift capacity
Crane swing system is 372° non-continuous rotation
Equipped with close loop hydrostatic transmission, close loop hydraulic system is ideal for logging & MPLT operaions
Drum suitable for different slickline wire sizes range 0.092 - 0.160" and braided line 3/16" with more than 20,000 ft. wire capacity
Line speed varies 3 ft./min to 1900 ft./min
Line pull max 8000 lbs
Powered by 111 Hp Zone-2 diesel engine power pack
Truck engine PTO driven units are also avaliable in Rig safe spec
Benchmark ATEX approved measuring head and data acquisition system ( combined depth, tension and speed )
Hydraulic driven air conditioner for operator cabin suitable for desert climate condition, suitable up to 60° ambient temperature
Air compressor 1300lpm @ 8 bar
ATEX rated electrical air conditioner in special cases
Measuring wheels are suitable to handle wires 0.092 to 0.160" and up to ¼", metric and feet unit wheels are available upon choice

Sand blasted to SA 2-1/2 grade and apply 3 coat paint by customer specified colour

Onboard PCE (BOP and stuffing box) control unit
Equipped with 10K Psi high pressure test unit chart recorder. Unit is pneumatically operated with HP / LV and LP / HP combination pumps
