Skid Mounted
Bucking Units
Download technical specifications
Request for quotation
Product Technical Specifications
Dimension & Weight
Power tong skid
Feet : L 5.24 / W 3.28 / H 3.28
Meters : L 1.60 / W 1.00 / H 1.00
Approximate Weight : 1.807 lbs / 820 kg
Power pack skid
Feet : L 4.43 / W 3.60 / H 4.00
Meters : L 1.35 / W 1.10 / H 1.22
Approximate Weight : 1.873 lbs / 850 kg
General
Skid units are constructed in steel box sections
Power tong
Model : TP-82 ting ( foster model 58-93R tong )
Size range : 2-3/8" - 5-1/2"
Backup : Rotary backup with double wide jaws ( same with as in the tong )
Torque capacity
Low range : 6,000 ft lb
High range : 1,200 ft lb
RPM range : based on 33,5 gpm at 2,000 psi
Low range : 27 rpm
High range : 126 rpm
Unit supplied with only below single acting jaw assembly
- 2-3/8" - 2-7/8" jaws for the backup & 2-3/8" - 2-7/8" jaws for the tong ( total two sets )
- 2-7/8" - 3-1/2" jaws for the backup & 2-7/8" - 3-1/2" jaws for the tong ( total two sets )
- 3-1/2" - 4-1/2" jaws for the backup & 3-1/2" - 4-1/2" jaws for the tong ( total two sets )
- For other potional jaws assembly up to 5-1/2" please contact our sales department
Operator display / controls
- Direction control valve
- Hydraulic system pressure guage 0-3,000 psi
- Hydraulic torque guage
- Engine throttle control
- Engine start / stop
- Engine rpm / hour meter
- Engine coolant temp guage
- Engine oil pressure guage
- Battery volt meter

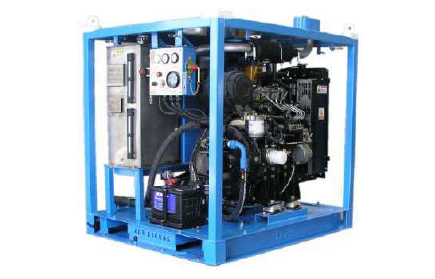

Power pack
Diesel engine driven hydraulic power pack
Hydraulic power for power tong is from onboard diesel engine driven hydraulic power pack, powered by 4 cylinders, naturally aspirated perkins 404D-22 IOPU diesel engine rated for 48.7 hp @ 2,800 rpm
Equipment is suitable for operation in up to 52° c ambient temperature
Skid base frame is provided with pollution drip pans with drain plugs
Engine starting system
12 VDC starting system with alternator & maintenance free battery
Fuel system and fuel tank
stainless steel 60 liters ( 15.8 US Gallon ) capacity with level guage and breather cum filler
Hydraulic system
Open loop hydraulic system
Hydraulic reservoir : 39.6 USG (150 liters)
Optional Items
Set for 4-HD 4" mechanical jacks
Painting
All steel materials are sandblasted to Sa 2 ½ and are painted with three stage painting process with inorganic zinc primes and customer supplied color code single stage jotun hard top
