Product Technical Specifications

Dimension & Weight

Feet : L 4.60 / W 2.63 / H 4.93

Meters : L 1.40 / W 0.80 / H 1.50

Weight : 2205 lbs / 1000 kg


General

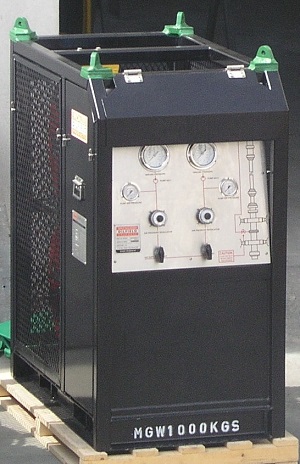

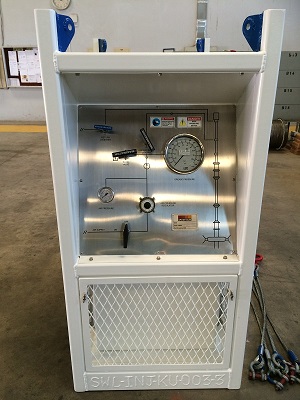

The Grease control unit is light weight, compact design & single piece configuraion constructed in steel box section frame works with aliminum sheet & steel expanded mesh covers on all sides

The pneumatic driven grease injection pump unit is suitable for supplying grease up to 10,000 psi to grease head & BOP, built to BS 12079

Skid frame has four lifting points for crane handling integral forklift pockets for ground handling

Unit is provided with the canvas protection cover & 4 leg lifting wire slings


Grease system

  1. Two air driven WIWA grease pump set 225:1
  2. Operating output pressure 0-10.000 psi
  3. Grease tank 2 x 20 US gallons
  4. Hose reels provided for spooling on and off hydraulic hose
  5. Grease supply : 1/2" x2x 100 ft 10.000 psi working pressure
  6. Grease return : 1/2" x1x 100 ft 10.000 psi working pressure

Options

Air driven grease transfer pump

Grease pump with ratio 169 : 1

Skid build options

  1. Carbon steel
  2. Aluminum

Painting

All steel materials are sandblasted to Sa 2 ½, inorganic zinc primer coated and all aluminum materials are primed, painted to customer supplied color code with single stage jotun paint products
